PM1006K Low Cost PM2.5 Sensor

PM1006K Low Cost PM2.5 Sensor

The PM1006K Low Cost PM2.5 SensorĀ is designedĀ to provideĀ real time output PM2.5 with dust deposition self-correction. It can also measure dust concentration in the air by detecting the intensity of scattered light, and output real time concentration via mathematical algorithm and scientific calibration.

Features

  • Particle Measurement Range: 0.3Āµm to 10Āµm
  • Built-In MCU directly outputs particle mass concentration
  • EMI shielded
  • Temperature compensation throughout the entire measurement range

Models

PM1006KĀ -Ā low cost pm2.5 sensor with real-time output and dust depositionĀ self correction.

PM1006K Specifications

  • Measured particle size:Ā 0.3Āµm to 10Āµm
  • Measurement range:Ā 0 to 1,000Āµg/m3
  • Accuracy: +/ā€“20%Ā orĀ +/ā€“20Āµg/m3
  • Temperature range:Ā -4ĖšF to 167ĖšF (-20ĖšC to 75ĖšC)
  • Humidity range: 0 to 95% RH
  • Supply voltage:Ā 5.0VDC +/-0.2VDC
  • Supply current:Ā <30mA
  • Communication interfaces:Ā UART & PWM
  • Dimensions:Ā 59mm x 45mm x 20mm
  • Weight: 17.4g
  • Lifespan: 5 years

    Warranty

    • 90 days - SeeĀ CO2Meter Terms and Conditions

    Manual PM1006KĀ DataSheet/Manual (pdf)


    $4.20

    Original: $14.00

    -70%
    PM1006K Low Cost PM2.5 Sensorā€”

    $14.00

    $4.20

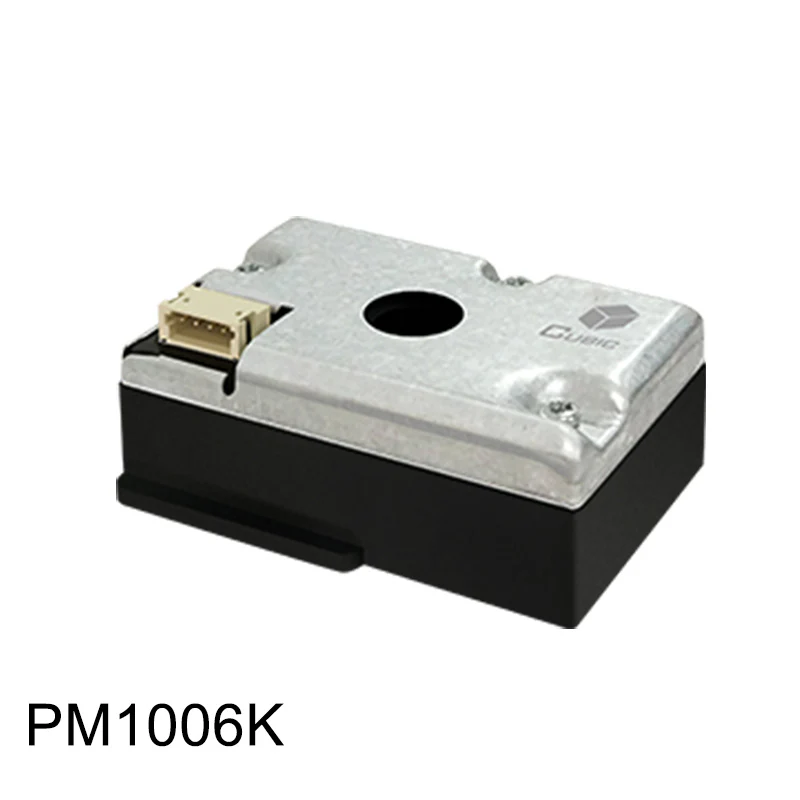

    Product image 1
