Single-Sensor O2 Deficiency & Enrichment Monitor with Horn Strobe

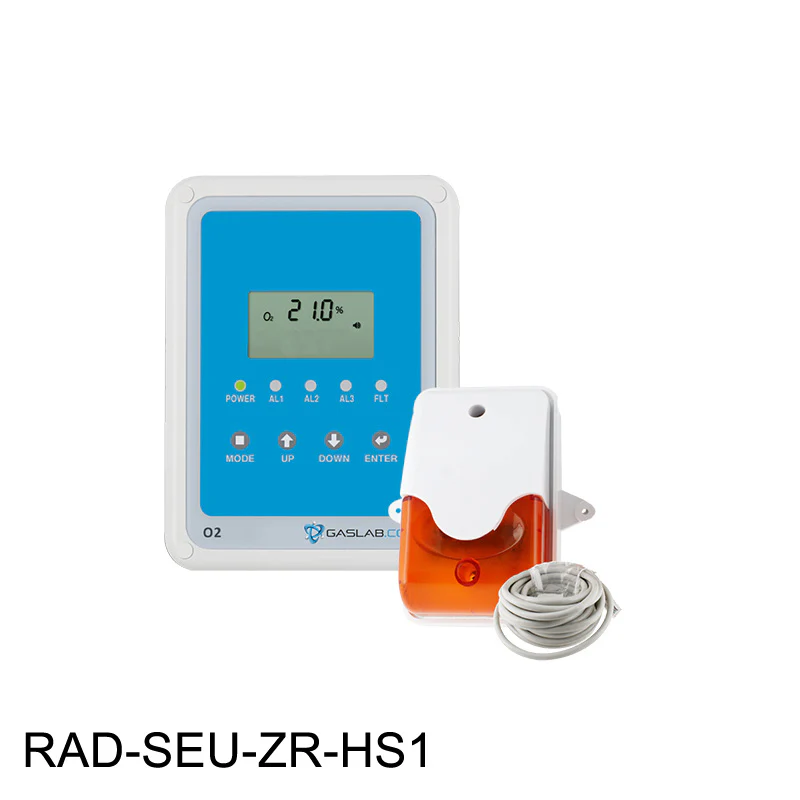

The Single-Sensor O2 Deficiency & Enrichment Monitor with Horn/Strobe (RAD-SEU-ZR-HS1) includes CO2Meter’s remote oxygen deficiency and enrichment sensor unit (no remote display) paired with a standalone horn strobe for added audible and visual alarms.
Please note: With the purchase of any RAD-SEU-ZR-HS1, a (RAD-CDU-HS1) Central Display Unit is also needed in order to accurately view gas concentrations.
This compact safety solution is designed to alert personnel to potentially oxygen-deficient environments, helping ensure compliance and protection in confined or hazardous spaces.
This device is used primarily in laboratories, pharmaceuticals, cryogenics, process cooling, freezers, manufacturing and research facilities.
Features
- Provides 24/7 protection for you and your staff against oxygen deficiency
- 90db audible and visual alarm on the sensor (90db)
- 3 user-configurable alarms meet all OSHA codes
- Long-life zirconium oxide sensor, lasts up to 10+ years!
*A surge protector is required for safeguard and longevity of the monitor*
Works With:
- RAD-0002-ZR-HS2: Oxygen Deficiency Depletion Safety Alarm
- RAD-CDU-HS1: Central Display Unit for Gas Safety Alarms
- RAD-0022-ZR: Display Add On
-
RAD-PMU: Power Monitor Unit
- SV-1029: Solenoid Shut-Off Safety Valve
- Certificate of Calibration - Available on request in comments at purchase. For factory recalibration order part no. CAL-0001 here.
Specifications
-
Measurement Range: 0-23% display
- Display Resolution: 0.1%
- Accuracy: Better than 2% FS
- Pressure Dependence: Not pressure dependent
- Response Time: O2: <2min by 90%
-
O2 Deficiency Alarms (default): AL1 19.5%, AL2 16.5%, and AL3 12%.
-
O2 Enrichment Alarms (default): AL 22%, AL2 24%, and AL3 25%.
- Sound Alarm: 90db @ 10cm
- Alarm Response Time: < 60 seconds
- Warm-Up Time: 600 seconds (10 min) for full operating temperature range
- Operating Temperature: -58°F to 122°F (-50°C to 50°C)
- Sensor Life Expectancy: 10+ years
Electrical
- Power Supply: Output: 12VDC, 2000mA.
- Power Input: 100~240 VAC, 50/60Hz, 0.6A (25 ft. Ethernet cable - included)
- Power Consumption: 3 Watts
- 6 VDC battery backup connections
- Relays: Peak Current < 2A @ 30 VDC or 250 VAC, SPDT
- 4-20mA output
Warranty
- 1 year on the device - See CO2Meter Terms + Conditions
Documents
RAD-SEU-ZR-HS1: Data Sheet (pdf)
Hard Wiring Your Oxygen Deficiency Safety Alarm (pdf)
Hard Wiring Your Safety Alarm to a PMU (pdf)
Exhaust Fan Relay Wiring Diagram (pdf)
SV-1029, SV-1030 Wiring Diagram (pdf)

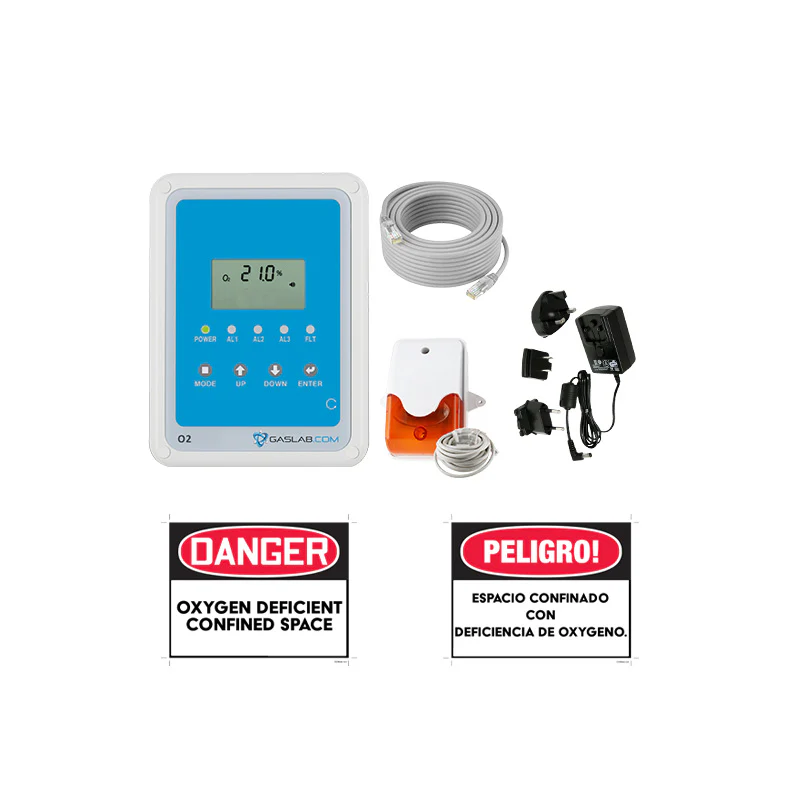

Oxygen Safety Signage (Included with Purchase) (zip)
RAD-0002-ZR Testing Procedures
RAD-0002-ZR Playlist: Unboxing, Installation, and Calibration
Accessories
- RAD-0022-ZR: Remote Display Add-On. This device is designed to provide additional read-outs to be connected for additional alarm points. (up to 3 read-outs per device).
- RAD-CDU-HS1: Central Display Unit and Horn Strobe. Designed to provide real-time visibility for up to 12 sensing units.
- RAD-PMU: Power Monitor Unit. This device is designed to ensure uninterrupted gas detection by alerting personnel instantly in the event of a power failure.
- CM-1029: Industrial Strobe Siren. The Industrial Gas Strobe Siren is designed to provide an additional flashing indicator of a potential gas leak in indoor areas that are using/storing compressed gases.
- Certificate of Calibration - Available on request in comments at purchase. For factory recalibration order part no. CAL-0001 here.
Original: $1,029.00
-70%$1,029.00
$308.70
