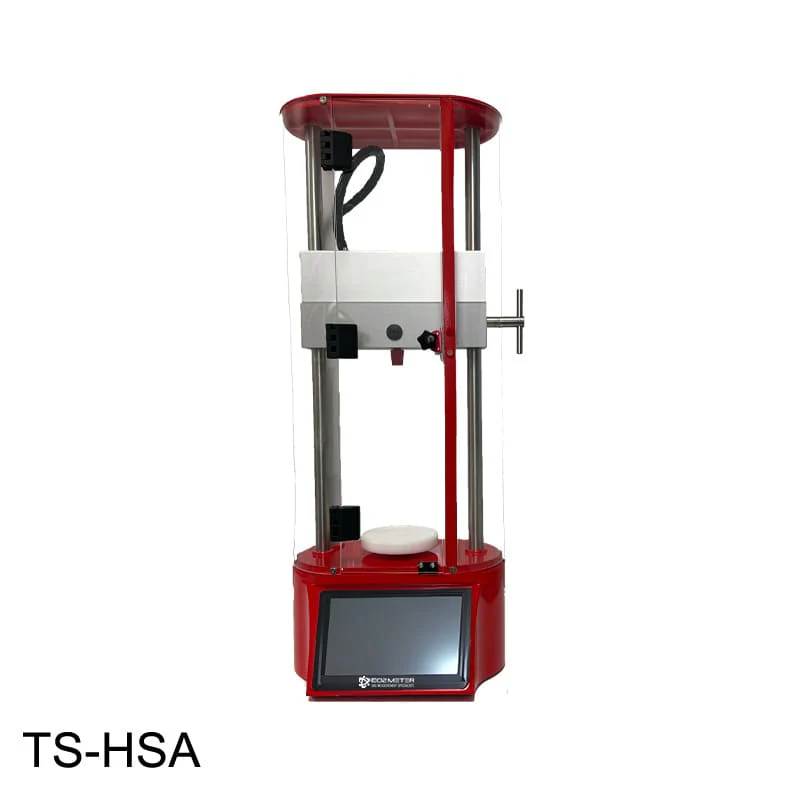

HSA Oxygen and Carbon Dioxide Headspace Analyzer
TheĀ HSA Oxygen and Carbon Dioxide Headspace Analyzer (TSA-HSA)Ā is designed to provide accurate real-time measurements and determination of O2 and CO2 gas in the headspace of cans and bottles.
This portable O2 and CO2 Headspace Analyzer will verify and conduct a measurement of headspace gas in just 30 seconds. This is a vital part of the quality control of bottled packaging and can increase overall product shelf-life.
Features:
- Determination of the headspace gases in 30 sec.
- Determination of the headspace O2 content
- Determination of the headspace CO2 content
- Calculation of the O2 concentration mg/L in the container
- Digital data connection
- Touchscreen
- Saving Data on USB or directly via available software
- Easy handling, Easy operation, and Easy Cleaning
Models
- TS-800 - HSA Oxygen and Carbon Dioxide Headspace Analyzer
Specifications
-
Measurement range:
- Headspace volume [ml]Ā 5-30
-
O2 concentration [mg/L]Ā 0 - 0,1
-
Foreign gases [mL/L]Ā 0-1
-
Accuracy:
- Headspace volume [ml] Ā± 0,2
-
O2 concentration [mg/L] Ā± 0,002
- Foreign gases [mL/L] Ā± 0,002
-
Pressure [bar]:
- Measuring Range: 0 - 7
- Accuracy: Ā± 1%
- Resolution: 0,01
-
Temperature [Ā°C]:
- Measuring Range: 0 - 40
- Accuracy: Ā± 0,1 Ā°C
- Resolution: 0,05
-
O2 concentration [ppm]:
- Measuring Range: 0 - 2000
- Accuracy: Ā± 2%
- Resolution: 2
TecSense sensors are CE, FCC, IC, KC, and MIC marked, and meet the requirements of ASTM F2714-08. The manufacturer is DIN ISO 9001/2015 certified.
Warranty
- 1 year warranty, See CO2Meter Terms & Conditions.
$1,440.00
Original: $4,800.00
-70%HSA Oxygen and Carbon Dioxide Headspace Analyzerā
$4,800.00
$1,440.00
Description
TheĀ HSA Oxygen and Carbon Dioxide Headspace Analyzer (TSA-HSA)Ā is designed to provide accurate real-time measurements and determination of O2 and CO2 gas in the headspace of cans and bottles.
This portable O2 and CO2 Headspace Analyzer will verify and conduct a measurement of headspace gas in just 30 seconds. This is a vital part of the quality control of bottled packaging and can increase overall product shelf-life.
Features:
- Determination of the headspace gases in 30 sec.
- Determination of the headspace O2 content
- Determination of the headspace CO2 content
- Calculation of the O2 concentration mg/L in the container
- Digital data connection
- Touchscreen
- Saving Data on USB or directly via available software
- Easy handling, Easy operation, and Easy Cleaning
Models
- TS-800 - HSA Oxygen and Carbon Dioxide Headspace Analyzer
Specifications
-
Measurement range:
- Headspace volume [ml]Ā 5-30
-
O2 concentration [mg/L]Ā 0 - 0,1
-
Foreign gases [mL/L]Ā 0-1
-
Accuracy:
- Headspace volume [ml] Ā± 0,2
-
O2 concentration [mg/L] Ā± 0,002
- Foreign gases [mL/L] Ā± 0,002
-
Pressure [bar]:
- Measuring Range: 0 - 7
- Accuracy: Ā± 1%
- Resolution: 0,01
-
Temperature [Ā°C]:
- Measuring Range: 0 - 40
- Accuracy: Ā± 0,1 Ā°C
- Resolution: 0,05
-
O2 concentration [ppm]:
- Measuring Range: 0 - 2000
- Accuracy: Ā± 2%
- Resolution: 2
TecSense sensors are CE, FCC, IC, KC, and MIC marked, and meet the requirements of ASTM F2714-08. The manufacturer is DIN ISO 9001/2015 certified.
Warranty
- 1 year warranty, See CO2Meter Terms & Conditions.
