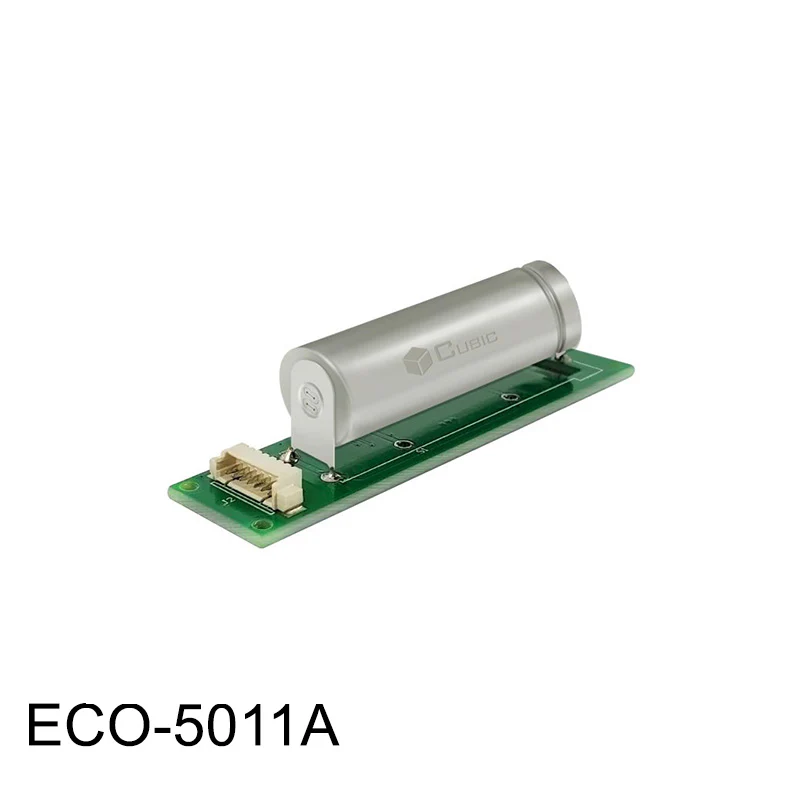

ECO-5011A Electrochemical 0-10,000ppm CO Sensor
The ECO-5011A Electrochemical 0-10,000ppm CO Gas SensorĀ is designed to meetĀ UL2034, EN50291 and ROHS application requirements.
This gas sensor is ideal forĀ battery powered applications with low power requirements. It also offers environmentally friendly electrolytes with robust sensor packaging to ensure technology wont leak.
Features
- Expanded Measuring Range Up To 10,000ppm
- Designed for battery powered applications
- Long Lifespan 8+ years
- UART Output for streamlined integration
- High Selectivity to CO and Great Repeatability
Models:
ECO-5011A -Ā 0-10,000ppm CO Sensor
Specifications
- Accuracy: +/-5ppm or +/-10%, whichever is larger
- Response Time:Ā <60s
- Measurement Range:Ā 0 to 10,000ppm
- Resolution:Ā 0.5ppm
- Repeatability:Ā +/-2% of reading
- Temperature Range:Ā -4ĖF to 140ĖF (-20ĖC to 60ĖC)
- Humidity Range:Ā 5 to 99% RH
- Communication Interface: UART
- Dimensions: 60 mm x 17 mm x 20 mm
- Weight: 20g
- Life Expectancy: >8 years
Warranty
- 90 Days. SeeĀ CO2Meter Terms and Conditions
$5.70
Original: $19.00
-70%ECO-5011A Electrochemical 0-10,000ppm CO Sensorā
$19.00
$5.70
Description
The ECO-5011A Electrochemical 0-10,000ppm CO Gas SensorĀ is designed to meetĀ UL2034, EN50291 and ROHS application requirements.
This gas sensor is ideal forĀ battery powered applications with low power requirements. It also offers environmentally friendly electrolytes with robust sensor packaging to ensure technology wont leak.
Features
- Expanded Measuring Range Up To 10,000ppm
- Designed for battery powered applications
- Long Lifespan 8+ years
- UART Output for streamlined integration
- High Selectivity to CO and Great Repeatability
Models:
ECO-5011A -Ā 0-10,000ppm CO Sensor
Specifications
- Accuracy: +/-5ppm or +/-10%, whichever is larger
- Response Time:Ā <60s
- Measurement Range:Ā 0 to 10,000ppm
- Resolution:Ā 0.5ppm
- Repeatability:Ā +/-2% of reading
- Temperature Range:Ā -4ĖF to 140ĖF (-20ĖC to 60ĖC)
- Humidity Range:Ā 5 to 99% RH
- Communication Interface: UART
- Dimensions: 60 mm x 17 mm x 20 mm
- Weight: 20g
- Life Expectancy: >8 years
Warranty
- 90 Days. SeeĀ CO2Meter Terms and Conditions
