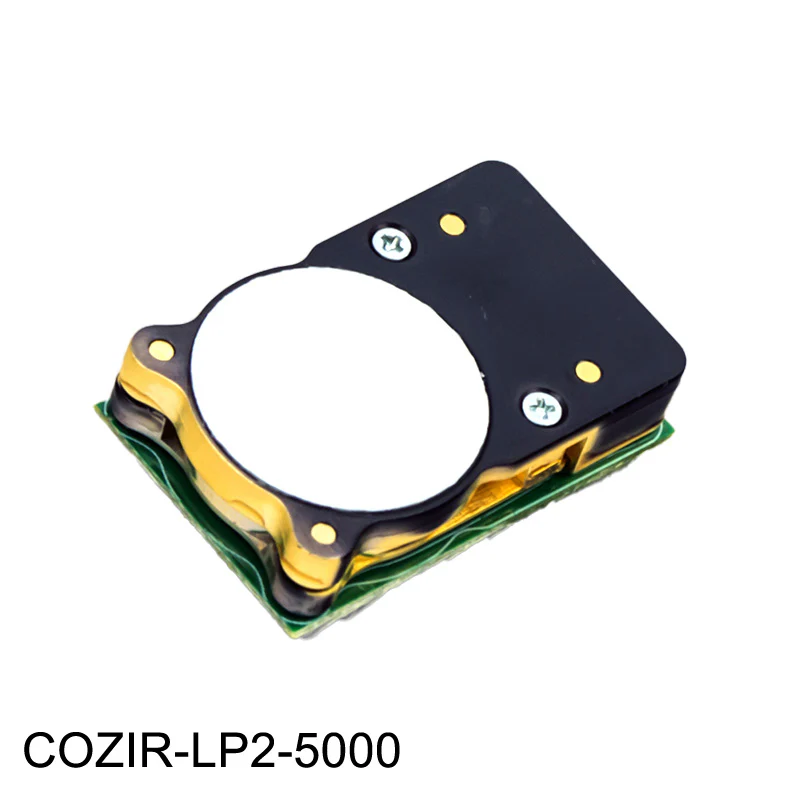

CozIR®-LP2 5000ppm CO2 Sensor
The CozIR®-LP2-5000 (formerly known as the GC-0034) holds the lowest power and longest lifespan of an infrared CO2 sensor available today. This sensor is perfect for IAQ, DCV and HVAC applications or gas monitoring detection systems.
Features
- Measures up to 1% CO2 concentration
- Digital (UART) and I2C Output
- Up to 50X lower power than typical NDIR CO2 Sensors
- Supports energy-efficient smart home environments
Models
- COZIR®-LP2-5000 – designed for low concentration CO2 environments with measurement ranges from 0-2000 ppm, 0-5000 ppm, and 0-1%.
Specifications
- CO2 Measurement: Patented Solid-state NDIR absorption
- Sample Method: Diffusion
- Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
- Accuracy: ±(30ppm, +3% of reading)
- Time to 1st Reading: <1 second
- Calibration: Auto calibration
- Resolution: 1ppm
- Pressure dependence: 0.15% of reading per mbar (normal atmospheric)
- Operating pressure range: 500mbar – 10 bar
- Response time: <30 secs (diffusion limited)
- Sensor Life Expectancy: > 15 years
Electrical/Mechanical
- Power Input: 3.25 to 5.5V. (3.3V recommended)
- Power Consumption: <3.5mW @ 3.3V
- Connector: 2 x 6-way 1.27mm header
- Communication: UART, I2C
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Free Easy-to-use GasLab® Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements for Data Logging or Changing Defaults
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Original: $87.99
-70%$87.99
$26.40
Description
The CozIR®-LP2-5000 (formerly known as the GC-0034) holds the lowest power and longest lifespan of an infrared CO2 sensor available today. This sensor is perfect for IAQ, DCV and HVAC applications or gas monitoring detection systems.
Features
- Measures up to 1% CO2 concentration
- Digital (UART) and I2C Output
- Up to 50X lower power than typical NDIR CO2 Sensors
- Supports energy-efficient smart home environments
Models
- COZIR®-LP2-5000 – designed for low concentration CO2 environments with measurement ranges from 0-2000 ppm, 0-5000 ppm, and 0-1%.
Specifications
- CO2 Measurement: Patented Solid-state NDIR absorption
- Sample Method: Diffusion
- Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
- Accuracy: ±(30ppm, +3% of reading)
- Time to 1st Reading: <1 second
- Calibration: Auto calibration
- Resolution: 1ppm
- Pressure dependence: 0.15% of reading per mbar (normal atmospheric)
- Operating pressure range: 500mbar – 10 bar
- Response time: <30 secs (diffusion limited)
- Sensor Life Expectancy: > 15 years
Electrical/Mechanical
- Power Input: 3.25 to 5.5V. (3.3V recommended)
- Power Consumption: <3.5mW @ 3.3V
- Connector: 2 x 6-way 1.27mm header
- Communication: UART, I2C
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Free Easy-to-use GasLab® Software
This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements for Data Logging or Changing Defaults
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
