CO2, Temp, and RH Indoor Air Quality Monitor

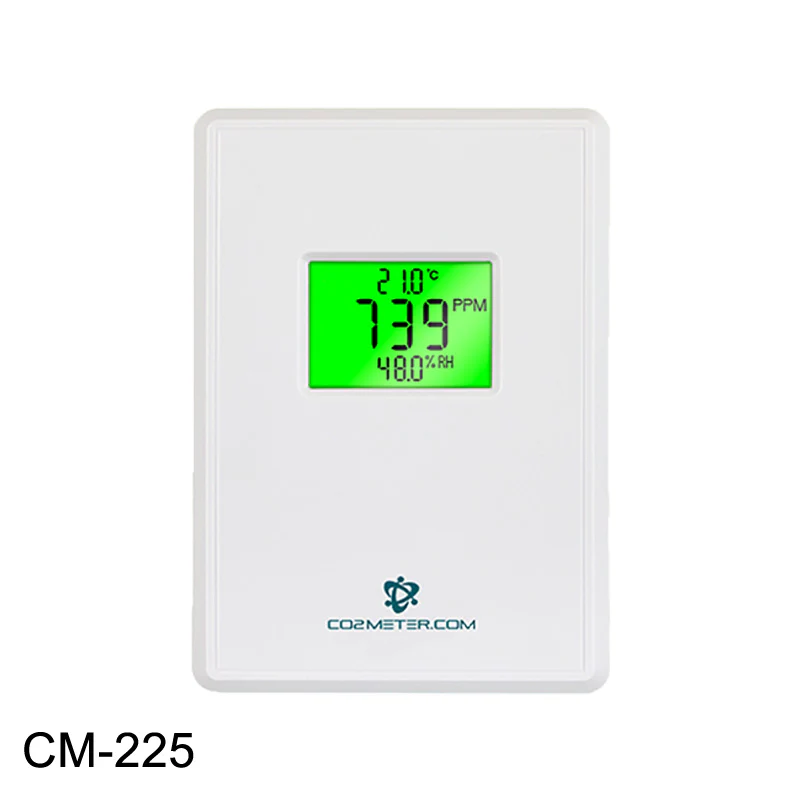

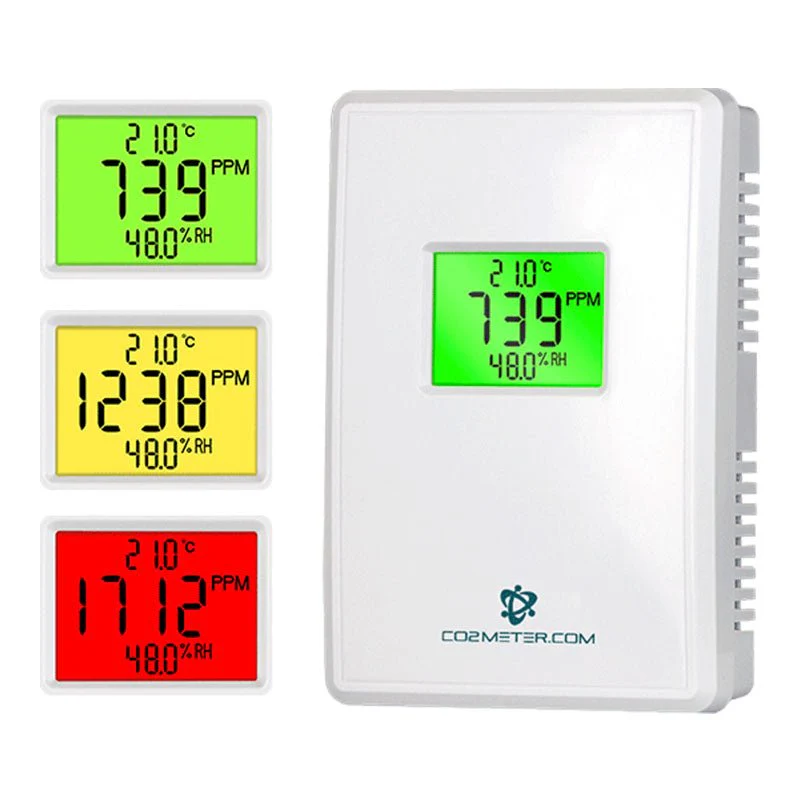

CO2, Temp, and RH Indoor Air Quality Monitor

The CO2, Temp, and RH Indoor Air Quality Monitor is a simple, low-cost, and maintenance-free fixed wall-mounted device. This unit is designed to be installed in indoor air environments such as homes, office buildings, classrooms, or commercial settings.

Features

  • ACCURATE: Precise NDIR technology to measure CO2 concentrations
  • CUSTOM: Offers 4 pre-set programs dependent on desired parameters
  • POWER: 100-240V AC Power Supply
  • INTERFACED: designed for indoor-air ventilation, window control systems
  • CERTIFIED: Meets LEED Certification
  • COMPLIANT: CE and ROHS compliant

    Specifications

    • CO2 Sensing Method: Non-Dispersive Infra-red (NDIR)
    • Sampling Method: Diffusion
    • CO2 Range: 0 - 10,000ppm
    • CO2 Accuracy: ±40 ppm +3% @ NTP
    • CO2 Display Resolution: 1ppm
    • Temp Range: 32 - 122°F
    • Temp Accuracy: ±0.5°F @ 77°F
    • Temp Display Resolution: 0.1°C
    • RH Range: 0 - 100%
    • RH Accuracy: ±2% @ 20 - 80%
    • RH Display Resolution: 0.1%
    • Operating Conditions Temp: 32 - 122°F
    • Humidity: 0 - 95% (NC)
    • Warm-up: Time 5 Seconds
    • CO2 Typical Sensor Life: 10+ Year
    • Approval: CE, UKCA
    • Power Supply: 100 – 240V AC 50/60Hz
    • Power Consumption: 3W Max
    • VFC Output: SPST – 5A @ 240V Max (N/O)
    • Dimensions: 86 mm x 125 mm x 36 mm

    Electrical

    • Power Supply: 100-240 VAC 50-60H
    • Power Consumption: 3W Max
    • VFC Output: SPST-5A @ 240V MAX (N/O)

    Warranty

    Documents

    CO2, Temp, RH IAQ Monitor Data Sheet (pdf)

    Manual (pdf)

    Accessories

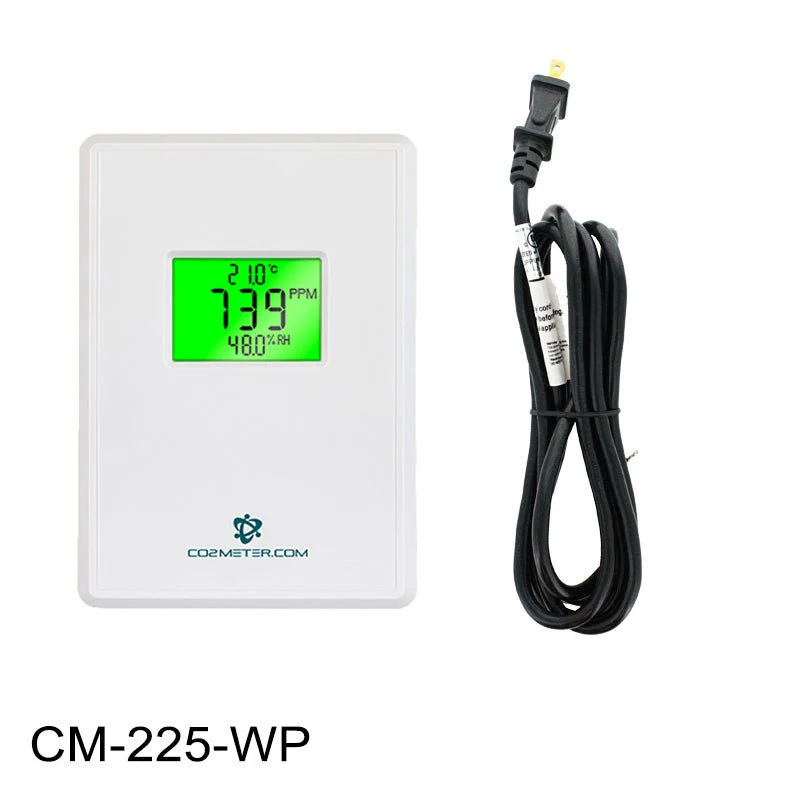

    CM-225-WP: Standard 110AC Power Adapter

    Select Title
    From $118.50

    Original: $395.00

    -70%
    CO2, Temp, and RH Indoor Air Quality Monitor—

    $395.00

    $118.50
    Product image 1
    Product image 2
    Product image 3

    Description

    The CO2, Temp, and RH Indoor Air Quality Monitor is a simple, low-cost, and maintenance-free fixed wall-mounted device. This unit is designed to be installed in indoor air environments such as homes, office buildings, classrooms, or commercial settings.

    Features

    • ACCURATE: Precise NDIR technology to measure CO2 concentrations
    • CUSTOM: Offers 4 pre-set programs dependent on desired parameters
    • POWER: 100-240V AC Power Supply
    • INTERFACED: designed for indoor-air ventilation, window control systems
    • CERTIFIED: Meets LEED Certification
    • COMPLIANT: CE and ROHS compliant

      Specifications

      • CO2 Sensing Method: Non-Dispersive Infra-red (NDIR)
      • Sampling Method: Diffusion
      • CO2 Range: 0 - 10,000ppm
      • CO2 Accuracy: ±40 ppm +3% @ NTP
      • CO2 Display Resolution: 1ppm
      • Temp Range: 32 - 122°F
      • Temp Accuracy: ±0.5°F @ 77°F
      • Temp Display Resolution: 0.1°C
      • RH Range: 0 - 100%
      • RH Accuracy: ±2% @ 20 - 80%
      • RH Display Resolution: 0.1%
      • Operating Conditions Temp: 32 - 122°F
      • Humidity: 0 - 95% (NC)
      • Warm-up: Time 5 Seconds
      • CO2 Typical Sensor Life: 10+ Year
      • Approval: CE, UKCA
      • Power Supply: 100 – 240V AC 50/60Hz
      • Power Consumption: 3W Max
      • VFC Output: SPST – 5A @ 240V Max (N/O)
      • Dimensions: 86 mm x 125 mm x 36 mm

      Electrical

      • Power Supply: 100-240 VAC 50-60H
      • Power Consumption: 3W Max
      • VFC Output: SPST-5A @ 240V MAX (N/O)

      Warranty

      Documents

      CO2, Temp, RH IAQ Monitor Data Sheet (pdf)

      Manual (pdf)

      Accessories

      CM-225-WP: Standard 110AC Power Adapter
