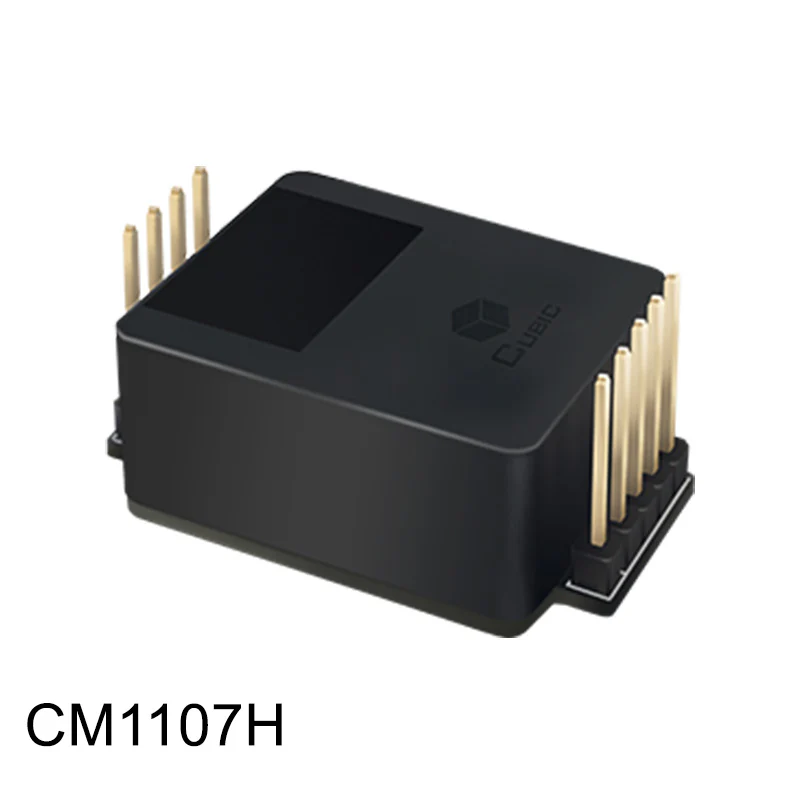

CM1107H 5% CO2 Dual Channel NDIR CO2 Sensor
The CM1107H 5% CO2 Dual Channel NDIR CO2 Sensor is designed to measure up to 5% CO2 by volume for safety alarm applications in breweries, beverage industries, cold chain facilities and indoor grow spaces.
Features
- Dual Channel NDIR CO2 Sensing Capabilities
- High Accuracy supports WELL, RESET, ASHRAE & California Title 24
- Maintenance Free - Automatic Baseline Calibration (ABC)
- Temperature and Humidity Compensation Throughout the Entire Measurement Range
- Small, Compact Design
- Long lifespan - 10+ years
Applications:
- Safety
- Restaurant and Beverage
- Indoor Greenhouse
- Cold Chain Facilities
Models
- CM1107H 5% CO2 Dual Channel NDIR CO2 Sensor - designed to monitor 0-5% CO2 in air dual channel for safety alarm applications.
- Sensor Development Kit (CM-200) - Easy to use, simply plug the sensor into the PCB and plug it into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide or use our library of source code on Github to build your own application or for OEM batch testing/configuration. Order sensors on this page, then order the Devkit here. Note: pinned sensors may require minor pin clipping.
Model CM1107H
- Target gas: Carbon Dioxide (CO2)
- Operating principle: Non-dispersive infrared (NDIR)
- Measurement range: 0-5.00% Vol
- Accuracy: ± 0.02% Vol+10% of reading, @0°C ~ 50°C, 50±10%RH
- Working Humidity: 0-95%RH (non-condensing)
- Working Current: 0-95%RH (non-condensing)
- Sampling frequency: 1s
- Time to first reading: ≤30s
- Power: DC 4.5V - 5.5V
- Working current: <50mA@1s average
- Signal output: UART_TTL (3.3V), I2C (3.3V)
- Alarm output: Reserved
- Life span: > 10 years
- Storage temperature: -30°C ~ 70°C
- Storage humidity: 0-95%RH non-condensing
- Dimensions: 33 x 23.4 x 15.2 mm
- Weight: 6.3g
Warranty
- 90 days - See CO2Meter Terms and Conditions.
Accessories
Gas Sensor Development Kit (CM-200) - designed to provide customers with an easy drop-in solution. Includes our free Gaslab data logging software. Sensor sold separately.
