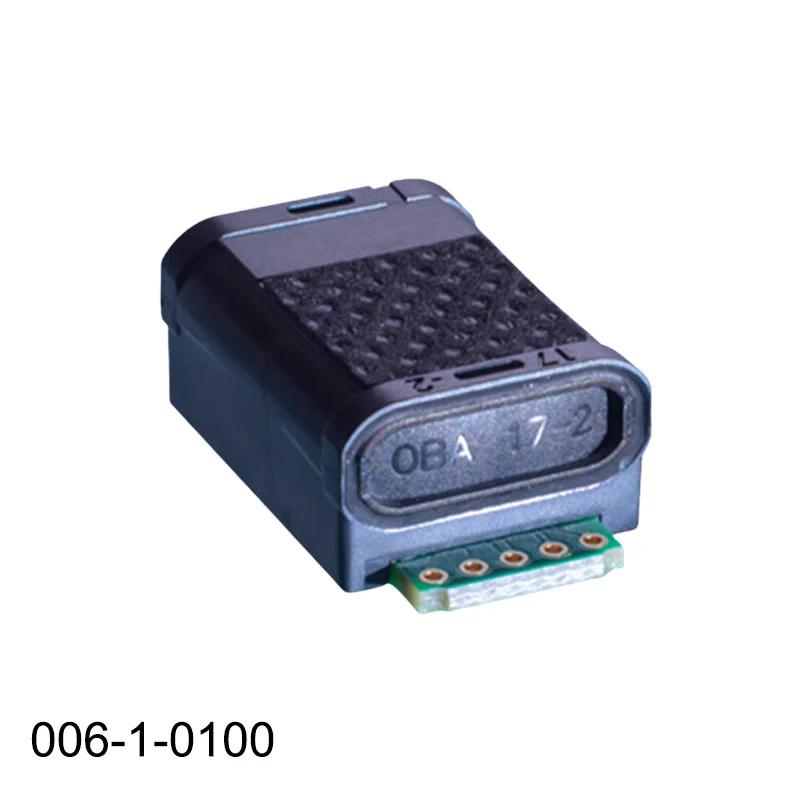

006-1-0100 Senseair Sunlight CO2 Sensor

The Senseair Sunlight CO2 Sensor (006-1-0100) is a a module that is designed for power efficiency and optimal for battery and wireless applications.

Any application with a tough environment or in environments with explosion risk is benefited by the solid-state design. It is also the first NDIR sensor with LED technology that truly saves power while maintaining a high precision.

Features

• Extremely power efficient

• Miniature size
• Self Correcting
• High Precision
• LED technology
• Compliant with ANSI/ASHRAE Standard 62.1-2022
• Compliant with Standard RESET grad B
• Compliant with WELL Building Standard (WELL v2)

Models

006-1-0100 Senseair Sunlight CO2 Sensor - designed for optimal use in battery and wireless applications. Contact us directly for wholesale pricing on large quantities of this sensor.

Specifications

• Measurement Gas: Carbon Dioxide
• Operating Principle: Non-dispersive infrared (NDIR)
• Measurement Range: 400-5,000ppm. Extended range 10,000ppm.
• Accuracy (CO2): ±50ppm ±3% of reading, extended range ±10% of reading

• Average current: 30µA or lower
• Peak current: <80 mA
• Steady state current during sampling: 50 mA
• Measurement period: default: 16s, 8 samples (adjustable host)
• Operating Range: 0-50°C, 0-85% RH
• Maintenance: Periodic Zero Calibration or ABC Calibration
• Power Supply: 3.05-5.5 V DC

• Storage Temperature: -40 – 85°C
• Dimensions: 34 x 21 x 12 mm, max

• Life expectancy: >15 years

• Communication Interface: UART, I2C


Warranty

• 90 days - See CO2Meter Terms and Conditions.
