Senseair S8 Low Power CO2 Sensor

Senseair S8 Low Power CO2 Sensor

The Sensesair S8 Low Power CO2 Sensor module is designed to be used in a wide range of applications where both energy consumption and accuracy are critical factors.

Features

  • Miniature size
  • Compliant with ANSI/ASHRAE Standard 62.1-2022
  • Compliant with RESET grad B
  • Compliant with WELL Building Standard® (WELL v2™)
  • Individually calibrated
  • Maintenance-free
  • Long term stability
  • Low power consumption

Models

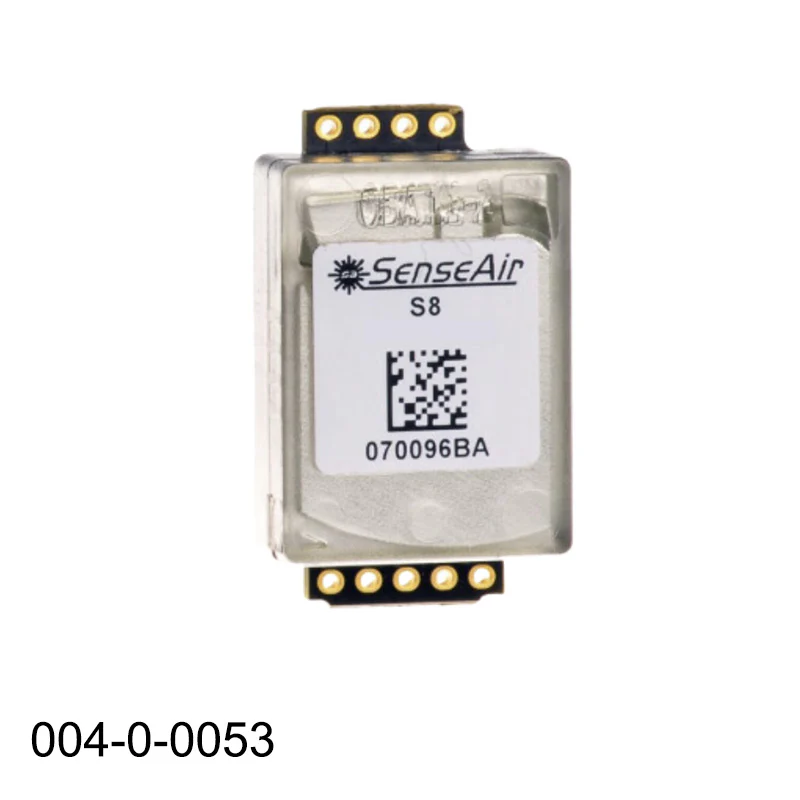

004-0-0053 Senseair S8 Low Power CO2 Sensor - designed for high volume production with focus on energy consumption and accuracy.

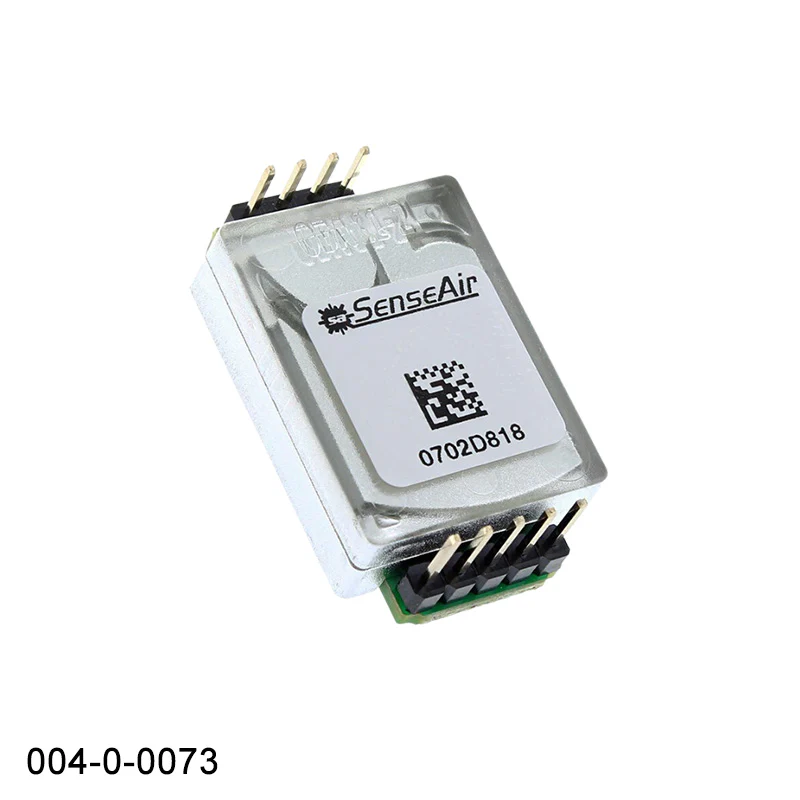

004-0-0073 Senseair S8 Low Power CO2 Sensor w/ PINS - designed for high volume production with focus on energy consumption and accuracy.

Specifications

CO2 Measurement: non-dispersive infrared (NDIR)
Measurement Method: diffusion
Measurement Range: 400 to 2,000 ppm, 0 to 10,000ppm
CO2 Accuracy: ± 40 ppm ± 3% of reading
Communication Options: UART Modbus
Alarm Output (open collector): Open > 1,000ppm, Closed <800 ppm
PWM Output: 0 to 100 % duty cycle for 0 to 2,000ppm
Operating Temperature: 0 to 50°C
Dimensions: 8.5 x 33.5 x 20 mm
Sensor Life Expectancy: > 15 years
Maintenance Interval: no maintenance required for normal applications with ABC on
Self-Diagnostics: complete function check on startup

Electrical / Mechanical

  • Power Supply: 4.5 V to 5.25  V DC
  • Max Current: 300 mA < 18mA average.
  • Power Consumption: 300mA peak, 30mA average

Warranty

CO2 Sensor Documention S8 Sensor Datasheet (pdf)

CO2 Sensor Documention S8 Sensor Manual (pdf)

CO2 Sensor Documentation Handling Manual Sensair S8 (pdf)

Senseair ISO Certification Senseair ISO Certification (pdf)
