0-25% Oxygen O2 Sampling Data Logger
The 25% Oxygen Sampling Data Logger is designed to measure oxygen levels over time in enclosed environments, used primarily in life sciences, incubation, and scientific and medical applications.
Features
- Large LCD Display for Instant O2 Measurements
- Audible and Visual Alarm Indicators
- Data Logging with micro SD Card (16GB included), real-time data graphing
- Li-ion rechargeable batteries lasting 30+ hours (3 included)
Applications
- Fermentation monitoring and validation
- Biological Incubators
- Agricultural O2 uptake analysis
- O2 leak detection
- Fire Suppression System Testing
- Scientific Research
Specifications
- Measures: Oxygen - 0-25% O2
- Relative Humidity: 0~95%, ±3% @25°C (20~80%RH), others ±5%
-
Temperature: 0~50°C,±1℃
- Barometer: 50~110kPa, ±0.4kPa
-
Accuracy: ±70 ppm +/- 5% of reading @ STP
-
Operating Conditions: 0~50°C(32~122°F), 0~95%RH, non-condensing
- Display Resolution: O2: 1ppm, 10ppm, or 100ppm
-
Storage Temperature: -20~60°C(-4~140°F)
- Alarm Volume: 80db ±5% @10cm
- Power: (3) Rechargeable Li-ion 18650 3.7V batteries
- Weight: 305g (without batteries)
- Dimensions: 225.8 x 99.6 x 55 mm (8.9 x 3.9 x 2.2 in.)
- Sensor Life Expectancy: >5 years
Includes

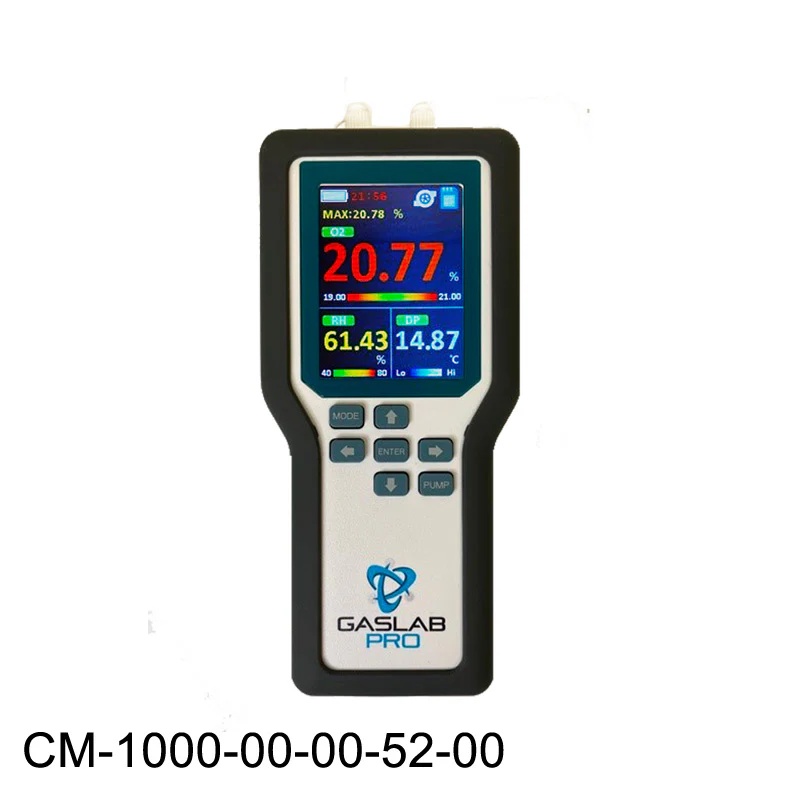

- Handheld O2 Sampling Data Logger Detector
- Manual
- 3 batteries
- USB 1.5m cable
- 16 GB SD Card - includes required calibration files
- Tubing - 3m 1/8" ID x 1/4" OD x 1/15" Wall Clear PVC Tubing
- Hydrophobic and Particulate Filters
- Water Traps
Warranty
- 1 year - See CO2Meter Terms and Conditions
Documents
GasLab Pro Calibration SD Card Notice (pdf)
CM-1000 Video Playlist - Settings, Data Logging, Calibration (web)
Logged data and calibration files stored on the micro SD Card
The GasLab® Software is not compatible with this device.
Accessories
- BAT-18650 - EBL 18650 3.7V Li-ion Rechargeable Batteries - provide a fast charge and are upgraded ETL certified to be used with all CM-500 and CM-1000 series handheld gas detectors.
- EBL Universal Battery Charger - Charge the lithium batteries via a USB cable. Provides a clear indication of charge levels, turning green after fully charged.
